Mouse Controlled Arduino LEDS blinking

Mouse Controlling Arduino LEDs


Use a mouse to control LEDs Connected to an Arduino.pelase following the steps



Required of Components

Arduino UNO
  1. Breadboard
  2. 9 LEDs
  3. 9 x 330 ohm resistors
  4. Wires to connect the circuit
  5. USB connection cable: to connect the computer to the Arduino
  6. A computer: to run the processing sketch, and to compile / upload the Arduino sketch
  7. Processing Program installed on computer
  8. Arduino Program installed on the computer

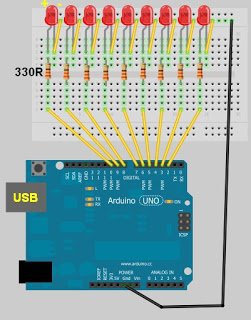

Diagram





Sourcre Code

1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
/* This program was created by ScottC on 9/5/2012 to receive serial
signals from a computer to turn on/off  1-9 LEDs */

void setup() {
  // initialize the digital pins as an output.
  pinMode(2, OUTPUT);
  pinMode(3, OUTPUT);
  pinMode(4, OUTPUT);
  pinMode(5, OUTPUT);
  pinMode(6, OUTPUT);
  pinMode(7, OUTPUT);
  pinMode(8, OUTPUT);
  pinMode(9, OUTPUT);
  pinMode(10, OUTPUT);
// Turn the Serial Protocol ON
  Serial.begin(9600);
}

void loop() {
  byte byteRead;

   /*  check if data has been sent from the computer: */
  if (Serial.available()) {

    /* read the most recent byte */
    byteRead = Serial.read();
    //You have to subtract '0' from the read Byte to convert from text to a number.
    byteRead=byteRead-'0';

    //Turn off all LEDS
    for(int i=2; i<11; i++){
      digitalWrite(i, LOW);
    }

    if(byteRead>0){
      //Turn on the relevant LEDs
      for(int i=1; i<(byteRead+1); i++){
        digitalWrite(i+1, HIGH);
      }
    }
  }
}

.......................................................................................................................................................

Processing  Code :


1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
//Created by ScottC on  send mouse coordinates to Arduino

import processing.serial.*;

// Global variables
int new_sX, old_sX;
int nX, nY;
Serial myPort;

// Setup the Processing Canvas
void setup(){
  size( 800, 400 );
  strokeWeight( 10 );

  //Open the serial port for communication with the Arduino
  //Make sure the COM port is correct
  myPort = new Serial(this, "COM6", 9600);
  myPort.bufferUntil('\n');
}

// Draw the Window on the computer screen
void draw(){

  // Fill canvas grey
  background( 100 );

  // Set the stroke colour to white
  stroke(255);

  // Draw a circle at the mouse location
  ellipse( nX, nY, 10, 10 );

  //Draw Line from the top of the page to the bottom of the page
  //in line with the mouse.
  line(nX,0,nX,height);
}


// Get the new mouse location and send it to the arduino
void mouseMoved(){
  nX = mouseX;
  nY = mouseY;

  //map the mouse x coordinates to the LEDs on the Arduino.
  new_sX=(int)map(nX,0,800,0,10);

  if(new_sX==old_sX){
    //do nothing
  } else {
    //only send values to the Arduino when the new X coordinates are different.
    old_sX = new_sX;
    myPort.write(""+new_sX);
  }
}

.....................................................................................................................................................
